#15 Double V Control Joint

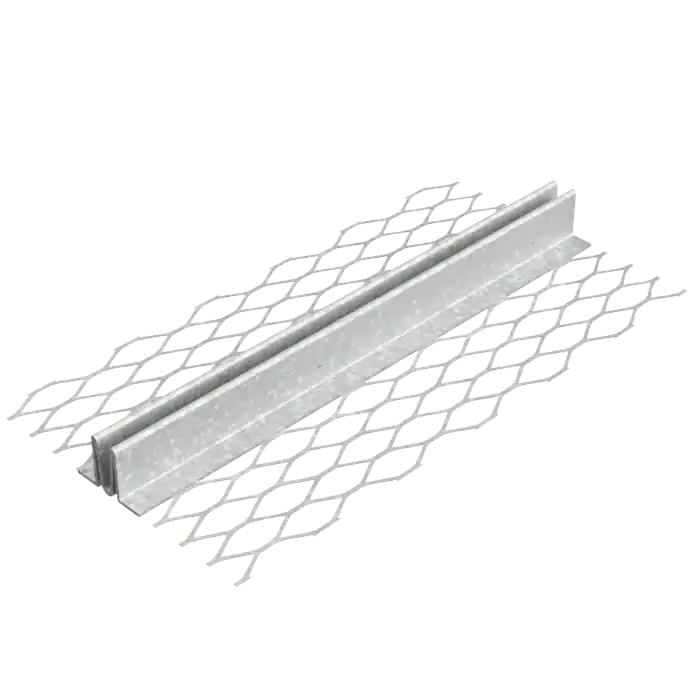

#15 Double-V Control Joint: The Ultimate Solution for Crack-Free Stucco & Plaster Surfaces
Tired of seeing unsightly cracks compromise the beauty and integrity of your stucco, plaster walls, and ceilings? The Double-V Control Joint is the essential, professional-grade solution for protecting large, finished surfaces from common structural stress. Engineered for both interior and exterior applications, this highly adaptable joint minimizes the risk of damage, ensuring a flawless, long-lasting finish.
Key Features & Benefits
- Stress Relief and Crack Prevention: Specifically designed to absorb and counteract the inherent stress caused by stucco curing shrinkage and thermal expansion/contraction.1 The Double-V design provides a controlled point of relief, preventing random, major cracking across large plastered areas.2

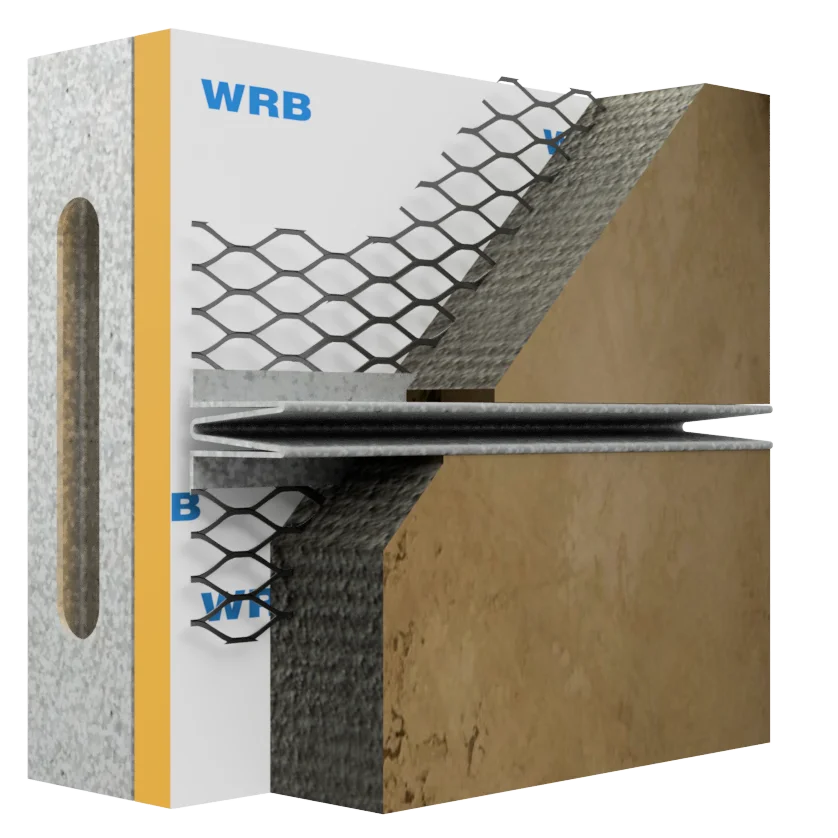

- Enhanced Durability: Features an expanded wing that maximizes the bond between the joint and the surrounding plaster/stucco, guaranteeing consistent material thickness and application. This leads to superior durability and a more resilient finish.
- Aesthetic Integration: The discreet V-groove profile blends seamlessly into the finished surface, maintaining the visual uniformity of your walls and ceilings. It’s the professional choice for projects demanding both structural integrity and a clean appearance.
- Versatile Application: Ideal for use in stucco applications, interior plaster systems, drywall, and on materials like masonry and concrete. Essential for meeting building codes requiring control joints in expansive surfaces.
🛠️ Product Specifications (Control Joint)
| Feature | Detail |
| Material | Galvanized Steel |
| Profile | Double-V (V-groove) |
| Function | Stucco/Plaster Shrinkage Compensation and Thermal Movement Control |
| Application | Exterior Stucco & Interior Plaster Walls/Ceilings |
| Primary Benefit | Prevents surface cracking and ensures plaster thickness |
Frequently Asked Questions (FAQ)
What is a Double-V Control Joint and why do I need one?
A Double-V Control Joint is a pre-formed accessory installed in plaster and stucco surfaces to manage the stress caused by the material's natural tendency to shrink as it cures and expand/contract with temperature changes (thermal movement).3 You need it to create a designated, controlled point of movement, which in turn prevents the development of unsightly and costly random cracks across large wall and ceiling areas.
Where should I install the stucco control joint?
Control joints should be installed in stucco and plaster to create smaller, manageable panels. General industry guidelines recommend installing control joints (e.g., the Double-V Control Joint) no more than 10 to 18 feet apart in both directions. They should also be placed at junctions where two different types of materials meet, and above and below openings like windows and doors.
Is the Double-V Control Joint suitable for exterior stucco applications?
Yes, this control joint is specifically engineered for robust exterior stucco systems. It's built to withstand harsh weather conditions and effectively manage the significant thermal movement that occurs on outdoor walls. Be sure to select the appropriate material (e.g., rust-resistant PVC or galvanized steel) for your specific environment.
How does the expanded wing help with installation?
The expanded wing provides a wider surface area for the plaster or stucco to adhere to. This not only increases the joint's stability but also acts as a built-in guide for the installer, helping them achieve a consistent and uniform thickness of the finish coat, which is crucial for overall system durability.
What is the difference between an expansion joint and a control joint?
A control joint (like the Double-V) is primarily used in non-structural plaster and stucco to manage shrinkage and thermal stress.4 An expansion joint is typically used in structural concrete and masonry elements to accommodate major structural movement, settlement, or isolation between large sections of a building.
