Drywall L Metal Molding Specifications

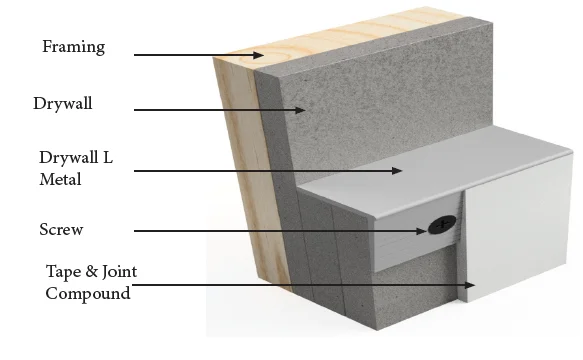

Brand X Metals ‘Drywall ‘L’ Trim is used to encapsulate recessed or raised sections of wall panel. The tapered nail flange allows for a clean edge.
Comparable to: DRML, ST, STF, DWL
PRODUCT SUBMITTAL SHEET:(Click on the PDF logo above)
MATERIAL: Aluminum Alloy 6063 T5 ASTM: B221
THICKNESS: Nominal .050
LENGTH: Standard 10 ft.
FINISH: Standard-Clear Anodized; Architectural 200R1 Medium Etch AAM32C10A21
Drywall L Metal Molding Also available: ‘Mill Finish’ for field painting and custom anodized colors.
| Dim. A | PART # |
| 1/4″ | DL 25 |
| 1/2″ | DL 50 |
| 5/8″ | DL 625 |
| 3/4″ | DL 75 |
| 1″ | DL 100 |
| 1-1/4″ | DL 1250 |
| 1-1/2″ | DL 150 |
| 1-3/4″ | DL 175 |
| 2″ | DL 200 |
| 2-1/4″ | DL 225 |
| 2-1/2″ | DL 250 |
| 2-3/4″ | DL 2750 |
| 3″ | DL 300 |
| 3-1/4″ | DL 3250 |
| 3-1/2″ | DL 3500 |
| 3-3/4″ | DL 3750 |
| 4″ | DL 400 |
| 4-1/4″ | DL 4250 |
| 4-1/2″ | DL 450 |
| 4-3/4″ | DL 4750 |
Custom sizes in 1/8″ increments are available upon request. Sizes larger than 4-3/4″ up to 40″ are available as a brake formed part. Call for more info.
OPTIONS:
Venting – All channel reveals from 1/2″ to 4″ can be vented if requested

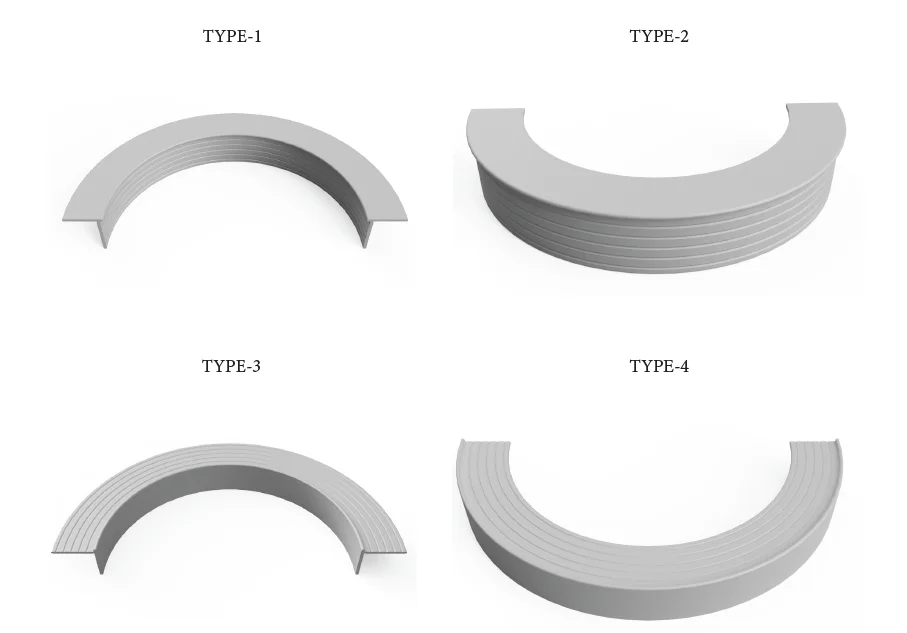

Radius – Drywall reveals can be curved to meet your required job specifications (Radius Order Form)
